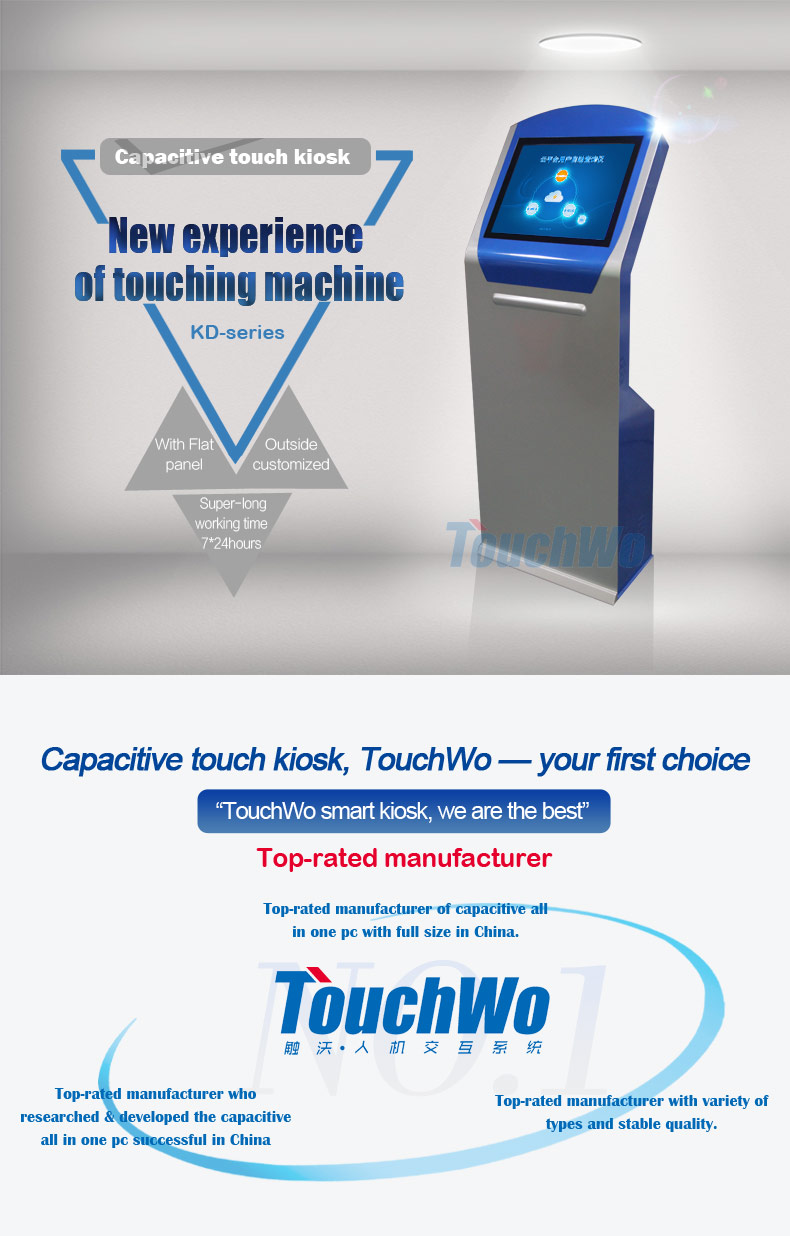

Multi-Functional 22  inch Self query machine indoor applications
Model: KD22
Series: KD
Size: 22"
Touchscreen type: metal
Color: customized
Brand: Touchwo/OEM
Response time: 20ms
Detail

.jpg

                      Capacitive Self Query Machine

           17"/19"/22"

Factory Price, Good Quality

MADE IN CHINA

         PRODUCT PARAMETERS

1,Touch screen parameters

Touch screen type

Projected capacitive touch screen

Response time

5ms

Touch points

Standard 10-point touch

Touch recognition

1.5mm(Finger, touch pen opaque objects)

Scanning rate

120 Hz

Scanning accuracy

4096×4096

Communication

Full-Speed USB 2.0,3.0

Theory Clicks

More than 60 million times

Operating current / voltage

180Ma/DC+5V±5%

Anti-light interference

Sunlight, incandescent, fluorescent and other light during normal use change

Touch data output

Coordinate output

Surface hardness

Physical steel Mohs 7 explosion-proof glass

Operating System Compatibility

Windows 7/ Windows 8 / Windows XP / Linux /MAC OS /Android

Drive

Free drive, plug and play


2,LED screen parameters


Screen Type


LED backlight, A-type

Resolution

1280*1024

Brightness

250 cd

Contrast ratio

5000:1

Response time

5.5ms

Number of colors

16.7M(8-bit 2(LVDS) Channel low-voltage differential signal)

Refresh rate

60Hz

Viewing angle

178 degrees horizontal,178 degrees vertical

Life time

50000 hours

3,Display parameters (as a touch display only partially used)

Power Interface

12V

VGA input(15-pin D-Sub)

1

High-definition multimedia interface(HDMI)

1

DVI Interface

1

USB multimedia player

1 (audio,video and pictures can play freely when computer closed)

Headphone output

1

Sound output power

2*10W

Number of Loudspeakers

2

4,Power supply parameters

Input Power

110-240V AC 50/60Hz

Overall power consumption

100W or 120-140W

Standby power consumption

3W

5,Working environment

Operating temperature

0-38

Working humidity

10% - 95%

Storage temperature

0-40

Storage humidity

10% - 95%

6,Standard Accessories

Instructions

Electronic file specification

Power Adapter

1 pc

Wall mount

1 set

Warranty Card

1 set

Certificate

1 set

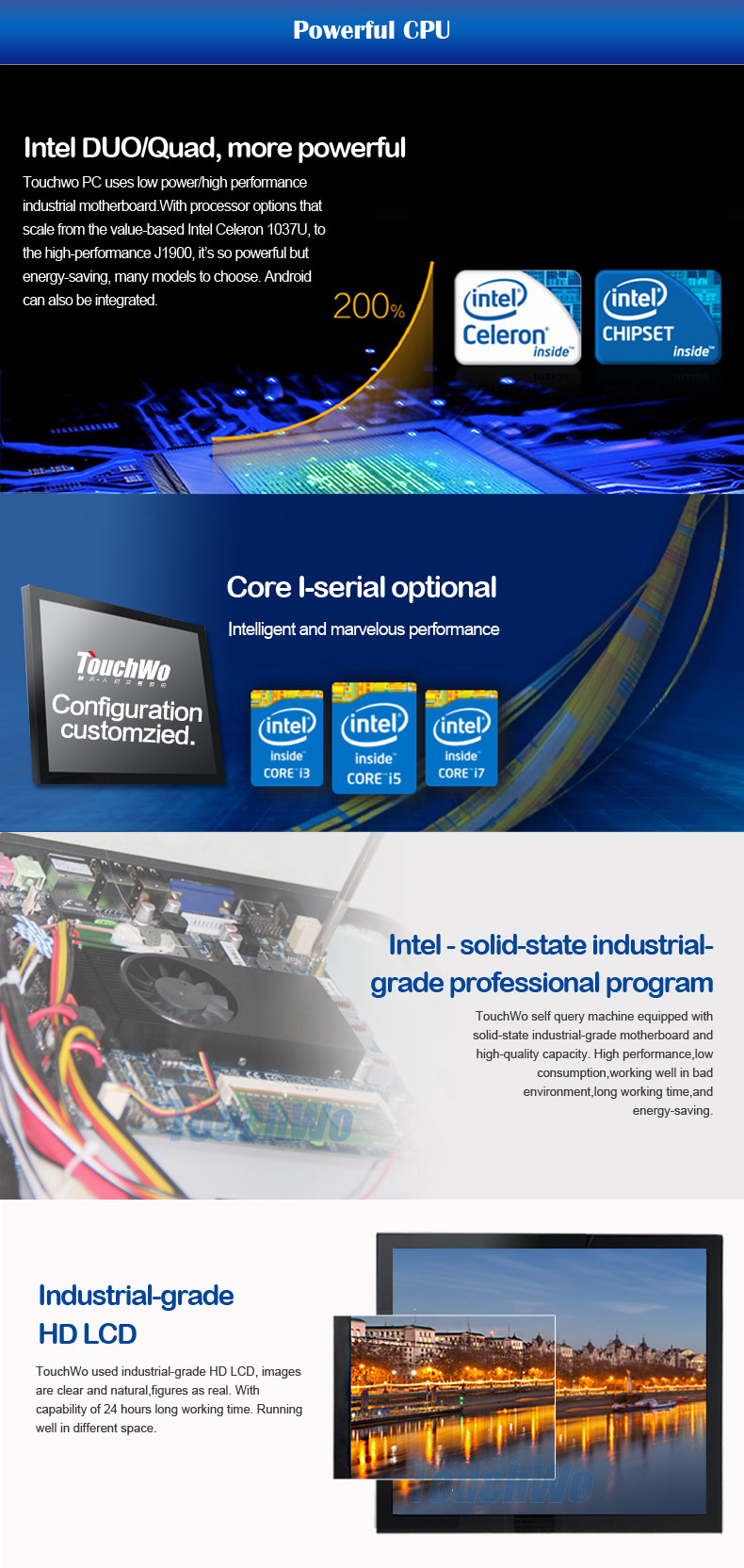

7,Computer system

Project

Android

X86 Standard version

X86

Elite version

X86

Deluxe version

X86

Flagship

version

Custom

Design

Chip

Quad-Core RK3188

Intel Celeron

Dual-core 1037U

Intel Celeron

Quad-core J1900

Intel I3

Intel I5

(Optional I7)

Available

RAM

2G

DDR3 2G/4G

DDR3 4G

DDR3 4G/8G

DDR3 4G/8G

Hard disk

Flash 8G, scalable

SSD 32G/500G

64G/500G

320G/500G

500G/1T

Graphics

Android HD

Integrated Graphics

Core

graphics

Core

graphics

Core

graphics

Definition

720P/1080P

Operating system

Octa. Core RK 3368. 5.1 , Kernel version 3.10

Multi-touch:Windows 7/ Windows 8/Windows 10/ Android/Linux

Single-touch: XP/CE/MAC

NIC

Integrated 10/100 / 1000M adaptive network card, wireless network card 802.11a / b / g / n
